Vision X 12" Amber SHOCKER Black Edition

The best is now even better. With E-marking and E-boost. Here is the next generation of Shocker.

Shocker is already Vision X’s strongest LED light bar. Shocker has two light modes – VRT (Vector Reflector Technology) for a high-performance long light pattern, and PLC (Photon Light Core Technology) for an incredibly wide light pattern. These two light modes can be activated individually or combined for an unbeaten – or shocking good – light.

The next generation of Vision X Shocker introduces several new features.

First of all, Shocker now supports Vision X’s higher power mode, E-boost. With E-boost, the LED light bar performs more than ever before. E-boost makes an already strong light bar even stronger.

Vision X Shocker now also has an E-marked light mode for the long light pattern. With the e-marked mode, the power is reduced. It is of course possible to activate/deactivate this according to need and situation.

Finally, the Shocker has received an update in terms of looks, with a functional benefit as well.

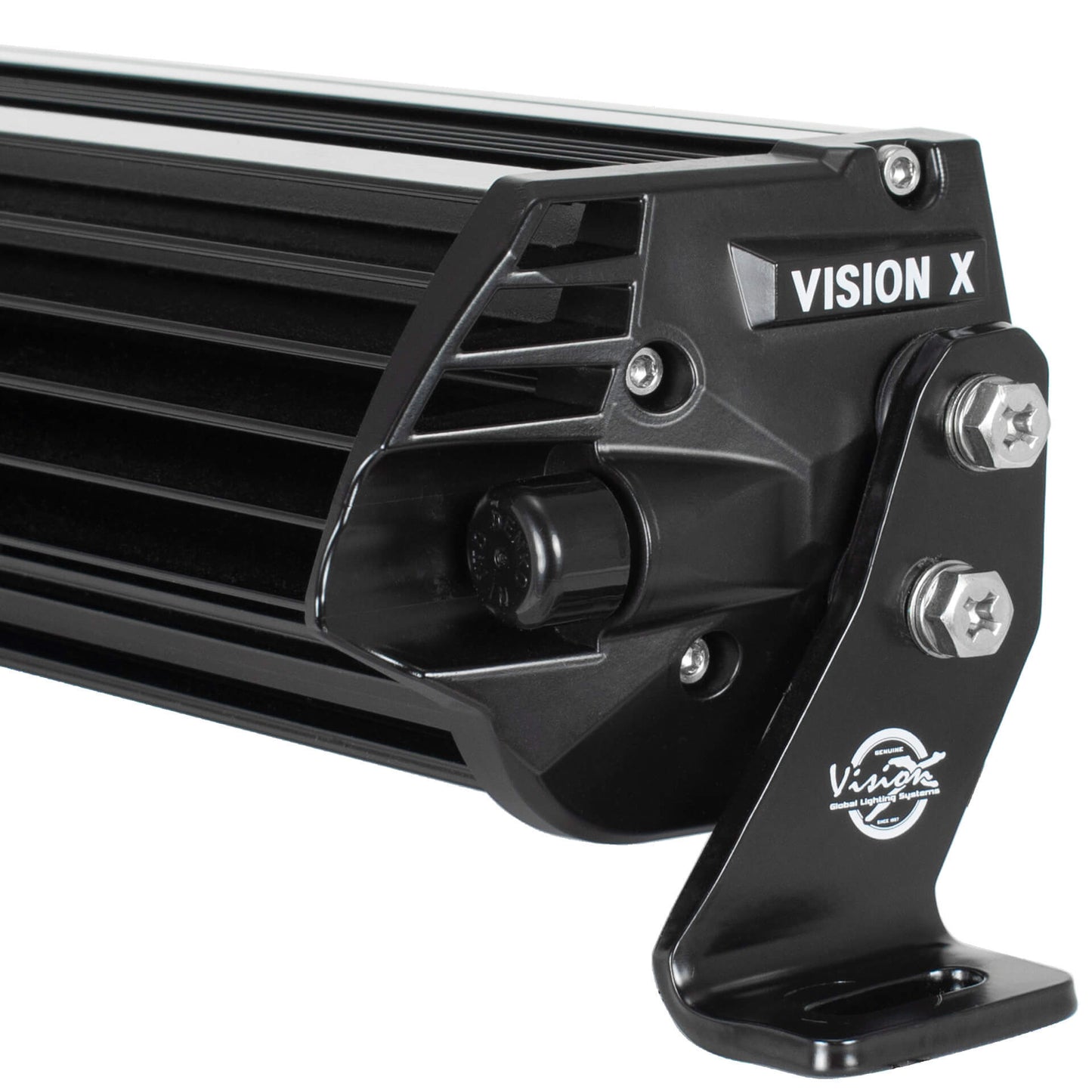

Vision X Shocker sizes 9″ – 20″ now have a black background behind the LEDs and reflectors, which makes the light bars a little more discreet. The Shocker bars now also have a daytime running light that matches the color of the wide light pattern, for an extra stylish appearance.

Just as before, the Vision X Shocker is made of components of the highest quality and durability. These LED light bars are IP68/IP69K rated, with lamp housings made of aircraft aluminum and lenses made of almost unbreakable polycarbonate, as well as a 21 Grms vibration rating.

The Vision X Shocker series has a 7-year functional warranty.

Features:

• Dual light modes, for width and length, which can be combined
• E-boost and e-marked, for more and less power
• Dark background and tasteful white or amber daytime running light
• Highest quality and durability, with 7-year functional warranty

Data:

• Watt: 160W
  • E-marked length: 22W
  • E-boost length: 60W
  • Photon width: 100W
• Effective lumens: 9230 lm
  • E-marked length: 1700 lm
  • E-boost length: 4380 lm
  • Photon width: 4850 lm
• LED: 6 x XPL-HI (VRT) + 18 x XPL-HI (Photon)
• Color width/daytime running light: Amber
• Estimated LED life: 50,000 hours
• Light pattern: Hybrid (length + width)
• Voltage: DC11-32V
• Size:
  • Width: 304 mm
  • Height: 97 mm (with bracket)
  • Depth: 97 mm
• Weight: 1.9 kg
• Lens: Polycarbonate
• Lamp housing: Aircraft aluminum
• IP class: IP68/IP69K
• Vibration class: 21 Grms
• Working temperature: from -40°C to +80°C
• Certificate: ECE R10, ECE R148, ECE R149, CE
• E-marked: Yes
• Reference: 17.5
